M8 Female Straight 4-pin Field Wireable - 4-pin A-coded · metal shell · IP67
Design family Field Wireable
Dimensions
Pinout
Pinout
Output Circuit
Output Circuit
Technical data
Other
- Product Type
- Connector
- Component Type
- Field Wireable
- Keyway Coding
- A-coded
- Color Code
- DC
- Shielding
- Yes
- IP Rating
- IP67
- Upper AWG
- 20
- Lower AWG
- 28
- Wire Gauge
- 20 – 28 AWG
- Coupling Nut
- Nickel Zinc Alloy
- Temperature Rating
- -40...+85°C
- Cable Compatibility (AWG)
- 20 – 28 AWG
- Mating Thread / Type Head 1
- M8
- Coupling Thread Gender1
- Female
- Voltage Rating
- 30
- Amperage Rating
- 3
- Gland Upper Range
- 6 mm
- Gland Lower Range
- 3.2 mm
- Overall Body Length
- 47 mm
- Gland Output Diameter
- 6.17 mm
- Body Diameter
- 14 mm
- Tool Included
- Yes
- Weight (lbs.)
- 0.10

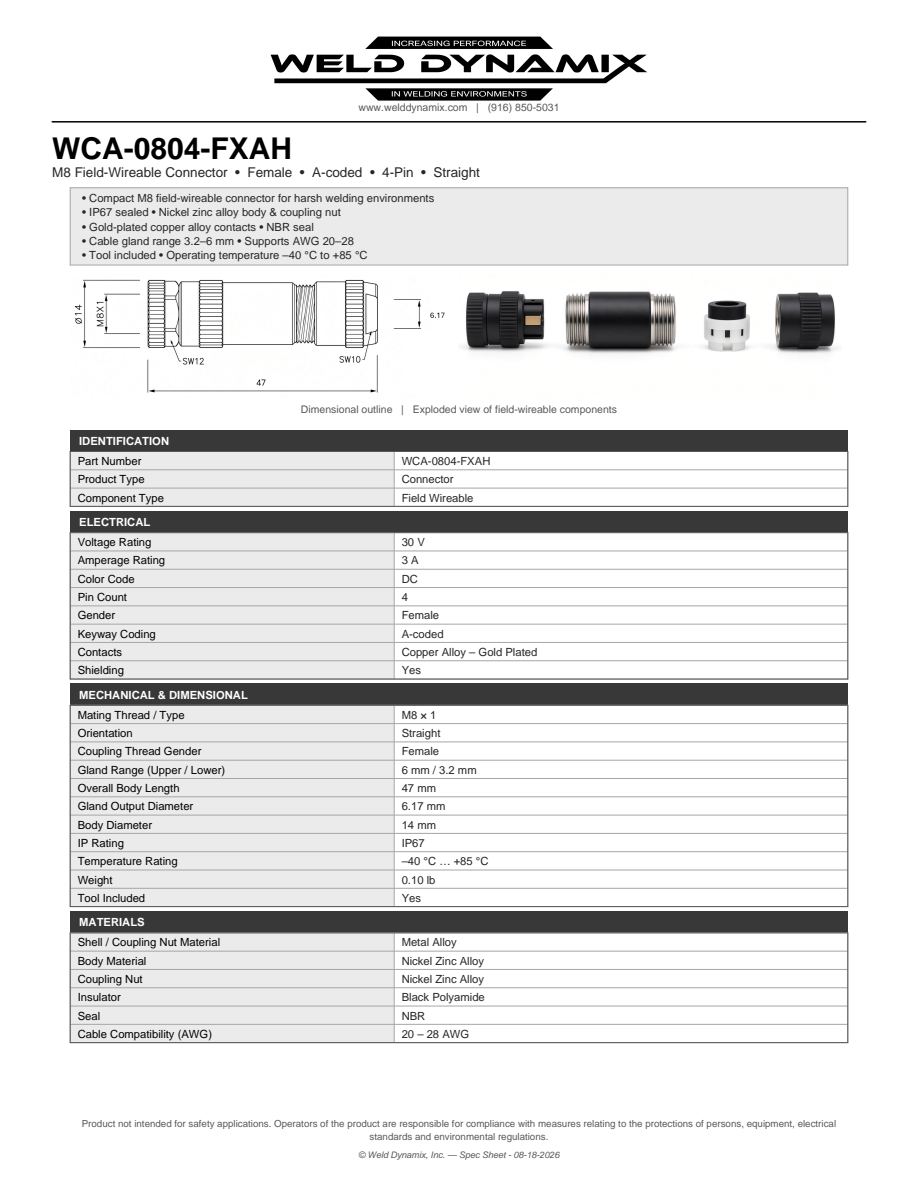

- Drawing
- /site/connectors/WCA-0804-FXAH.jpg
- /site/connectors/WCA-0804-FXAH.pdf
Housing
- Shell / Coupling Nut Material
- Metal Alloy
- Body Material
- Nickel Zinc Alloy
- Insulator
- Black Polyamide
- Contacts
- Copper Alloy - Gold Plated
- Seal
- NBR
Identification
- Family
- Field Wireable
Connection
- Pin Count
- 4
- Gender
- Female
- Orientation Head 1
- Straight
